Apple iPhone 8 Plus
Released: 2017, September 22
The Apple iPhone 8 Plus is a 2017 flagship smartphone powered by the Apple A11 Bionic processor. It features a 5.5-inch Retina LCD display with True Tone technology and a traditional Home button with Touch ID. It introduced a glass back design enabling Qi wireless charging alongside dual 12 MP rear cameras.
Full Specifications
Network
| Technology | GSM / HSPA / LTE |
|---|---|
| Bands | GSM 850 / 900 / 1800 / 1900, HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100, LTE bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 29, 30, 34, 38, 39, 40, 41, 66 |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat16 1024/150 Mbps |
Launch
| Announced | 2017, September 12 |
|---|---|
| Status | Discontinued |
Body
| Dimensions | 158.4 x 78.1 x 7.5 mm (6.24 x 3.07 x 0.30 in) |
|---|---|
| Weight | 202 g (7.13 oz) |
| Build | Glass front (Corning glass), glass back (Corning glass), aluminum frame |
| SIM | Nano-SIM |
| Protection | IP67 dust and water resistant (up to 1m depth for 30 minutes) |
Display
| Type | Retina IPS LCD, 625 nits (typical) |
|---|---|
| Size | 5.5 inches, 83.4 cm2 (~67.4% screen-to-body ratio) |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~401 ppi density) |
| Protection | Ion-strengthened glass |
Platform
| OS | iOS 11, upgradeable to iOS 16.7.10 |
|---|---|
| Chipset | Apple A11 Bionic (10 nm) |
| CPU | Hexa-core (2x Monsoon + 4x Mistral) |
| GPU | Apple GPU (three-core graphics) |
Memory
| Card Slot | No |
|---|---|
| RAM | 3 GB |
| Storage | 64 GB |
| Internal Options | 3/64GB, 3/128GB, 3/256GB |
Main Camera
| Setup | 12 MP, f/1.8, 28mm (wide), PDAF, OIS; 12 MP, f/2.8, 57mm (telephoto), 2x optical zoom |
|---|---|
| Features | Quad-LED dual-tone flash, HDR |
| Video | 4K@24/30/60fps, 1080p@30/60/120/240fps |
Selfie Camera
| Setup | 7 MP, f/2.2, 32mm (standard) |
|---|---|
| Features | Face detection, HDR |
| Video | 1080p@30fps |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No |
Comms
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot |
|---|---|
| Bluetooth | 5.0, A2DP, LE |
| Positioning | GPS, GLONASS, GALILEO, QZSS |
| NFC | Yes (Apple Pay only) |
| Radio | No |
| USB | Lightning, USB 2.0 |
Features
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer |
|---|
Battery
| Type | Li-Ion 2691 mAh, non-removable (10.28 Wh) |
|---|---|
| Charging | 15W wired, 50% in 30 min (advertised), Qi wireless charging |
Misc

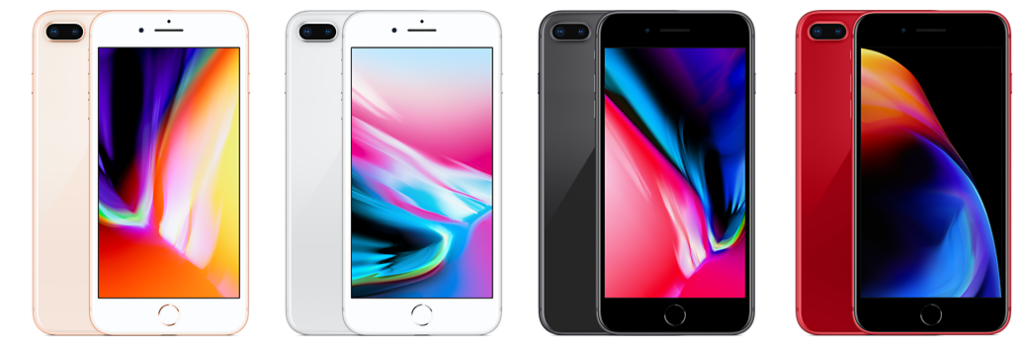

| Colors | Gold, Space Gray, Silver, Red |
|---|---|
| Models | A1864, A1897, A1898, A1899, iPhone10,2, iPhone10,5 |
