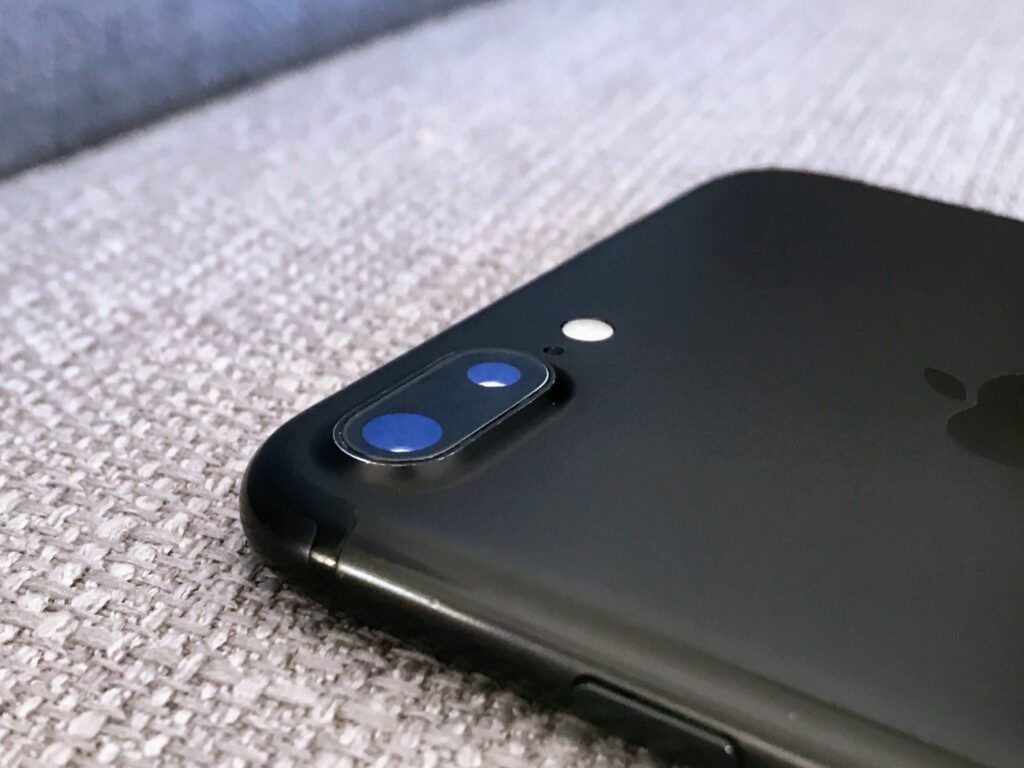

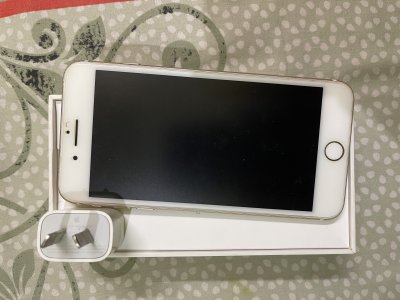

Apple iPhone 7 Plus
Released: 2016, September 16
The Apple iPhone 7 Plus is a flagship smartphone released in September 2016 featuring Apple’s A10 Fusion chip and a 5.5-inch Retina IPS LCD screen. It debuted Apple’s first dual-camera system with a dedicated 2x optical zoom telephoto lens and an IP67 water-resistance rating while removing the 3.5mm headphone jack.
Full Specifications
Network
| Technology | GSM / CDMA / HSPA / EVDO / LTE |
|---|---|
| Bands | 2G: GSM 850 / 900 / 1800 / 1900, CDMA 800 / 1900 / 2100; 3G: HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100, CDMA2000 1xEV-DO; 4G: 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 27, 28, 29, 30, 38, 39, 40, 41 |
| Speed | HSPA 42.2/5.76 Mbps, LTE Cat9 450/50 Mbps, EV-DO Rev.A 3.1 Mbps |
Launch
| Announced | 2016, September 07 |
|---|---|
| Status | Discontinued |
Body
| Dimensions | 158.2 x 77.9 x 7.3 mm (6.23 x 3.07 x 0.29 in) |
|---|---|
| Weight | 188 g (6.63 oz) |
| Build | Glass front (Corning glass), aluminum back, aluminum frame |
| SIM | Nano-SIM |
| Protection | IP67 dust and water resistant (up to 1m for 30 mins) |
Display
| Type | Retina IPS LCD, 625 nits (typ) |
|---|---|
| Size | 5.5 inches, 83.4 cm2 (~67.7% screen-to-body ratio) |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~401 ppi density) |
| Protection | Ion-strengthened glass, 3D Touch display & home button |
Platform
| OS | iOS 10.0.1, upgradable to iOS 15.8.5 |
|---|---|
| Chipset | Apple A10 Fusion (16 nm) |
| CPU | Quad-core 2.34 GHz (2x Hurricane + 2x Zephyr) |
| GPU | PowerVR Series7XT Plus (six-core graphics) |
Memory
| Card Slot | No |
|---|---|
| RAM | 3 GB |
| Storage | 32 GB |
| Internal Options | 32GB 3GB RAM, 128GB 3GB RAM, 256GB 3GB RAM |
Main Camera
| Setup | 12 MP, f/1.8, 28mm (wide), 1/3.0", PDAF, OIS; 12 MP, f/2.8, 56mm (telephoto), 1/3.6", AF, 2x optical zoom |
|---|---|
| Features | Quad-LED dual-tone flash, HDR |
| Video | 4K@30fps, 1080p@30/60/120fps, 720p@240fps |
Selfie Camera
| Setup | 7 MP, f/2.2, 32mm (standard) |
|---|---|
| Features | Face detection, HDR |
| Video | 1080p@30fps |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No |
Comms
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot |
|---|---|
| Bluetooth | 4.2, A2DP, LE |
| Positioning | GPS, GLONASS, GALILEO, QZSS |
| NFC | Yes |
| Radio | No |
| USB | Lightning, USB 2.0 |
Features
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer |
|---|
Battery
| Type | Li-Ion 2900 mAh, non-removable (11.1 Wh) |
|---|---|
| Charging | Standard wired |
Misc
| Colors | Jet Black, Black, Silver, Gold, Rose Gold, Red |
|---|---|
| Models | A1661, A1784, A1785, A1786, iPhone9,4, iPhone9,2 |
