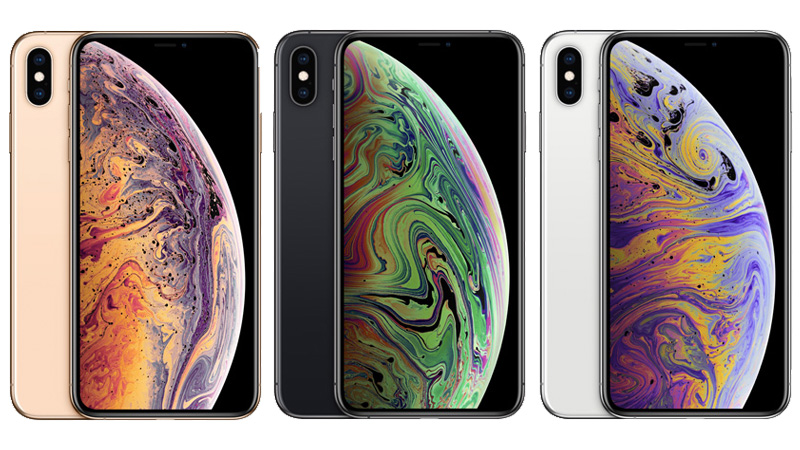

Apple iPhone XS Max
Released: 2018, September 21
The Apple iPhone XS Max features a 6.5-inch Super Retina OLED display driven by the A12 Bionic chipset. It includes a dual 12 MP camera setup with optical stabilization and 2x optical zoom along with Face ID biometric authentication. Built with a stainless steel frame and glass front and back, it supports Qi wireless charging and IP68 dust/water resistance.
Full Specifications
Network
| Technology | GSM / CDMA / HSPA / EVDO / LTE |
|---|---|
| Bands | GSM 850 / 900 / 1800 / 1900; CDMA 800 / 1900; HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100; LTE bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 46, 66 |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (4CA) Cat16 1024/150 Mbps, EV-DO Rev.A 3.1 Mbps |
Launch
| Announced | 2018, September 12 |
|---|---|
| Status | Discontinued |
Body
| Dimensions | 157.5 x 77.4 x 7.7 mm (6.20 x 3.05 x 0.30 in) |
|---|---|
| Weight | 208 g (7.34 oz) |
| Build | Glass front (Corning-made), glass back (Corning-made), stainless steel frame |
| SIM | Nano-SIM and eSIM or Dual SIM (Nano-SIM, dual stand-by) – for China |
| Protection | IP68 dust/water resistant (up to 2m for 30 min) |
Display
| Type | Super Retina OLED, HDR10, Dolby Vision, 625 nits (HBM) |
|---|---|
| Size | 6.5 inches, 102.9 cm2 (~84.4% screen-to-body ratio) |
| Resolution | 1242 x 2688 pixels, 19.5:9 ratio (~458 ppi density) |
| Protection | Scratch-resistant glass, oleophobic coating |
Platform
| OS | iOS 12, upgradable to iOS 18 |
|---|---|
| Chipset | Apple A12 Bionic (7 nm) |
| CPU | Hexa-core (2×2.5 GHz Vortex + 4×1.6 GHz Tempest) |
| GPU | Apple GPU (4-core graphics) |
Memory
| Card Slot | No |
|---|---|
| RAM | 4 GB |
| Storage | 64 GB |
| Internal Options | 64GB 4GB RAM, 256GB 4GB RAM, 512GB 4GB RAM |
Main Camera
| Setup | 12 MP, f/1.8, 26mm (wide), 1/2.55", 1.4µm, dual pixel PDAF, OIS; 12 MP, f/2.4, 52mm (telephoto), 1/3.4", 1.0µm, PDAF, OIS, 2x optical zoom |
|---|---|
| Features | Quad-LED dual-tone flash, HDR (photo/panorama) |
| Video | 4K@24/30/60fps, 1080p@30/60/120/240fps, HDR, stereo sound recording |
Selfie Camera
| Setup | 7 MP, f/2.2, 32mm (standard); SL 3D (depth/biometrics sensor) |
|---|---|
| Features | HDR |
| Video | 1080p@30/60fps, gyro-EIS |
Sound
| Loudspeaker | Yes, with stereo speakers |
|---|---|
| 3.5mm Jack | No |
Comms
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot |
|---|---|
| Bluetooth | 5.0, A2DP, LE |
| Positioning | GPS, GLONASS, GALILEO, QZSS |
| NFC | Yes |
| Radio | No |
| USB | Lightning, USB 2.0 |
Features
| Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer |
|---|
Battery
| Type | Li-Ion 3174 mAh, non-removable |
|---|---|
| Charging | 15W wired, PD2.0, 50% in 30 min (advertised), Wireless (Qi) |
Misc
| Colors | Space Gray, Silver, Gold |
|---|---|
| Models | A1921, A2101, A2102, A2103, A2104, iPhone11,6 |
